| MOQ: | 1 set |
| Delivery Period: | 30-45 working days |

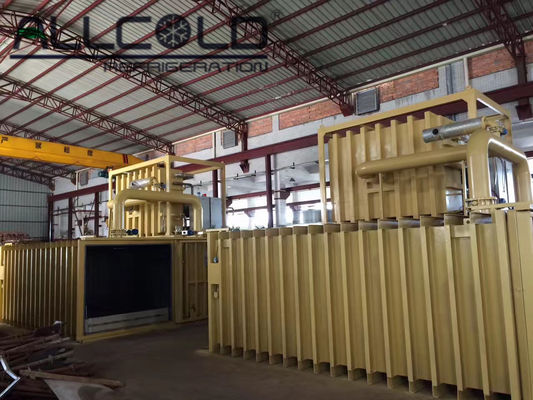

Fruit & vegetable processing machines/6pallets double chamber fresh products cooling machine/vacuum cooler
Vacuum Cooler Brief Description
The technology is based on the phenomenon that as the vapour pressure on a liquid reduces, its boiling point reduces. The boiling point of a liquid is defined as the temperature at which the vapour pressure of the liquid is equal to the external pressure. When the pressure above a liquid is reduced, the vapour pressure needed to induce boiling is also reduced, and the boiling point of the liquid decreases. By reducing pressure we can even boil off water at lower temperatures. This rapid evaporation of moisture from the surface and within the products due to the low surrounding pressure, absorbs the necessary latent heat for phase change from the product itself. This latent heat required for evaporation is obtained mostly from the sensible heat of the product and as a consequence of this evaporation the temperature of the product falls and the product can be cooled down to its desired storage temperature.
Vacuum Cooler Main Components
a. Control system---To control and show the working condition of the vacuum cooler.
b. Vacuum system--To takes away the air in vacuum chamber, then cool the vegetables down.
c. Vacuum chamber--To load your vegetables
d. Refrigeration system--To catch the water vapor in ths chamber so as to ensure the continous cooling process.
Vacuum Cooler Features
1. Green Cooling: Energy saving &Optimal cooling efficiency
2. Radily Cooling: From 30°C to 3°C in 20-30 Minutes
3. Extend Shelf Life: Stay freshness and Nutrition Longer
4. Accurated Control: PLC combine with sensitive sensors&valves
5. Easy Operation Design: Automatic Control work with touch screen
6. Reliable Parts: Busch/Leybold/Elmo Rietschle//Danfoss/Johnson/Schneider/LS
Vacuum Cooler Advantages
1. Minimized production losses
2. Improved economic of harvest operations
3. Minimized losses during marketing
4. Improved utilization by consumer
5. Expanded market opportunities
Vacuum Cooler Application Field
1. Vegetables(All Leafy /Broccoli/Cauli Flower/Mushrooms/Sweet corn/ etc.)
2. Flowers(Fresh cVegetablesut flowers)
3. Fruits(Berries/Cherries etc.)
Vacuum Cooler Models&Specifications
| Vegetables/Flowers/Fruits Vacuum Cooler Models& Specifications | |||||
| Model No. | Processing Capacity | Inside Chamber mm |
Produce Weight kg |
Electricity Type | Total Power kW |
| AVC-500 | 1 Pallet | 1,400x1,400x2,200 | 300-500 | 220V-660V/3P | 31 |
| AVC-1000 | 2 Pallets | 2,600x1,400x2,200 | 800-1,000 | 220V-660V/3P | 39 |
| AVC-1500 | 3 Pallets | 3,900x1,400x2,200 | 1,200-1,500 | 220V-660V/3P | 47 |
| AVC-2000 | 4 Pallets | 5,200x1,400x2,200 | 1,500-2,000 | 220V-660V/3P | 72 |
| AVC-3000 | 6 Pallets | 6,500x1,400x2,200 | 2,300-3,000 | 220V-660V/3P | 98 |
| AVC-4000 | 8 Pallets | 5,300x2,600x2,200 | 3,200-4,000 | 220V-660V/3P | 121 |
| AVC-5000 | 10 Pallets | 6,600x2,600x2,200 | 4,200-5,000 | 220V-660V/3P | 145 |
| AVC-6000 | 12 Pallets | 7,900x2,600x2,200 | 5,200-6,000 | 220V-660V/3P | 166 |
Customized Options of Our Vacuum Cooler
1. Condensor Options: Air cooling/Water cooling /Evaporative
2. Function Options: Hydro system&Water spray system
3. Door Options: Manual Door/Horizontal Sliding Door/ Upwards Lifting Door/ Vertical Lifting Door
|
|
