| MOQ: | 1 set |
| Delivery Period: | 30-45 working days |

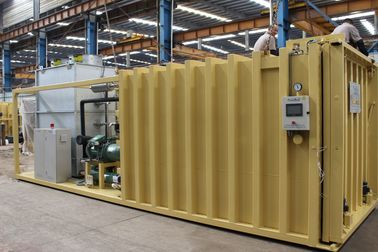

Eco Friendly Vacuum In Cooling System / Vacuum Chiller Hydro Vac System
Vacuum In Cooling System Description
After the product is harvested and packaged, it is placed on pallets for shipping. The pallets are loaded into a vacuum tight chamber and the process begins. The equipment drops the pressure inside the vessel by removing air through vacuum pumps. Once the level of vacuum reaches the "flash point" moisture and heat are removed from the product in the form of water vapor. The lower the pressure inside the chamber, the lower the boiling point of water. As the vacuum goes deeper, more water vapor is removed and the product temperature is reduced until the desired temperature is achieved.
The rate at which a product can be refrigerated is directly related to the surface area, density of its tissue and the amount of temperature drop. Typical cooling times range from 20 to 40 minutes at a temperature drop from 80 to 36 degrees Fahrenheit. The average moisture loss is one-percent for each eleven-degree Fahrenheit temperature drop.
Since produce is sold by weight, a hydro-vac system can help reduce moisture loss. This works by spraying clean water over the produce during the vacuum cooling cycle.
Vacuum In Cooling System Components
a. Vacuum chamber--To load your herbs.
b. Control system---To control and show the working condition of the vacuum cooler.
Vacuum In Cooling System Features
1. Green Cooling: Energy saving &Optimal cooling efficiency
2. Radily Cooling: From 30°C to 3°C in 20-30 Minutes
3. Extend Shelf Life: Stay freshness and Nutrition Longer
4. Accurated Control: PLC combine with sensitive sensors&valves
5. Easy Operation Design: Automatic Control work with touch screen
6. Reliable Parts: Busch/Leybold/Elmo Rietschle//Danfoss/Johnson/Schneider/LS
Vacuum Cooler Application Field
1. Vegetables(All Leafy Vegetables/Broccoli/Cauli Flower/Mushrooms/Sweet corn/ etc.)
2. Flowers(Fresh cut flowers), Herbs.
3. Fruits(Berries/Cherries etc.)
Vacuum Cooler Models&Specifications
| Vegetables/Flowers/Fruits Vacuum Cooler Models& Specifications | |||||
| Model No. | Processing Capacity | Inside Chamber mm |
Produce Weight kg |
Electricity Type | Total Power kW |
| AVC-500 | 1 Pallet | 1,400x1,400x2,200 | 300-500 | 220V-660V/3P | 31 |
| AVC-1000 | 2 Pallets | 2,600x1,400x2,200 | 800-1,000 | 220V-660V/3P | 39 |
| AVC-1500 | 3 Pallets | 3,900x1,400x2,200 | 1,200-1,500 | 220V-660V/3P | 47 |
| AVC-2000 | 4 Pallets | 5,200x1,400x2,200 | 1,500-2,000 | 220V-660V/3P | 72 |
| AVC-3000 | 6 Pallets | 6,500x1,400x2,200 | 2,300-3,000 | 220V-660V/3P | 98 |
| AVC-4000 | 8 Pallets | 5,300x2,600x2,200 | 3,200-4,000 | 220V-660V/3P | 121 |
| AVC-5000 | 10 Pallets | 6,600x2,600x2,200 | 4,200-5,000 | 220V-660V/3P | 145 |
| AVC-6000 | 12 Pallets | 7,900x2,600x2,200 | 5,200-6,000 | 220V-660V/3P |
166 |
Customized Options of Herbs Vacuum Cooler
1. Condensor Options: Air cooling/Water cooling /Evaporative
2. Function Options: Hydro system&Water spray system
3. Door Options: Manual Door/Horizontal Sliding Door/ Upwards Lifting Door/ Vertical Lifting Door
|
|
