SHENZHEN ALLCOLD CO., LTD

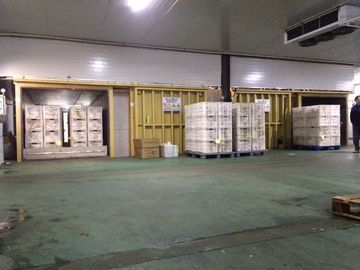

Mushrooms Vacuum Cooler

Product Details:
Place of Origin: China
Model Number: Pre Cooling System
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiate
Delivery Time: 30-45 working days
  • Detail Information
  • Product Description

Detail Information

Compressor: /Copeland/Maneurop Vacuum Pump: Leybold/Busch/Becker
Electrical Parts: Schneider/LS Refrigerants: R404
Voltage: 460V60HZ/3P Vacuum Chamber: L8.4*W2.0*H2.2m
Warranty: 1 Year
High Light:

pre cooling system

,

vacuum cooling process

Product Description

Mushrooms Pre Cooling System , Energy Saving Mushrooms Vacuum Chamber



Pre Cooling System Brief Description



Pre Cooling System is the quickest and most cost-efficient cooling system for vegetables, fruits, flowers & more. The vacuum cooling technology, which can strongly improve your product quality and at the same time reduce your cooling costs, is now becoming an acceptable investment for almost all vegetable growers!

After the product is harvested and packaged, it is placed on pallets for shipping. The pallets are loaded into a vacuum tight chamber and the process begins. The equipment drops the pressure inside the vessel by removing air through vacuum pumps. Once the level of vacuum reaches the "flash point" moisture and heat are removed from the product in the form of water vapor. The lower the pressure inside the chamber, the lower the boiling point of water. As the vacuum goes deeper, more water vapor is removed and the product temperature is reduced until the desired temperature is achieved.



Pre Cooling System Main Components



1. Vacuum system--To takes away the air in vacuum chamber, then cool the vegetables down.

2. Refrigeration system--To catch the water vapor in ths chamber so as to ensure the continous cooling process.

3. Control system---To control and show the working condition of the vacuum cooler.







Pre Cooling System Features



1. Extend Shelf Life: Stay freshness and Nutrition Longer

2. Accurated Control: PLC combine with sensitive sensors&valves

3. Easy Operation Design: Automatic Control work with touch screen

4. Reliable Parts: Busch/Leybold/Elmo Rietschle//Danfoss/Johnson/Schneider/LS



Pre Cooling System Application Field



1. Vegetables(All Leafy Vegetables/Broccoli/Cauli Flower/Mushrooms/Sweet corn/ etc.)
2. Flowers(Fresh cut flowers)
3. Fruits(Berries/Cherries etc.)





Vacuum Cooling Machine Models&Specifications

Vegetables/Flowers/Fruits Vacuum Cooling Machine Models& Specifications
Model No. Processing Capacity Inside Chamber
mm
Produce Weight
kg
Electricity Type Total Power
kW
AVC-500 1 Pallet 1,400x1,400x2,200 300-500 220V-660V/3P 31
AVC-1000 2 Pallets 2,600x1,400x2,200 800-1,000 220V-660V/3P 39
AVC-1500 3 Pallets 3,900x1,400x2,200 1,200-1,500 220V-660V/3P 47
AVC-2000 4 Pallets 5,200x1,400x2,200 1,500-2,000 220V-660V/3P 72
AVC-3000 6 Pallets 6,500x1,400x2,200 2,300-3,000 220V-660V/3P 98
AVC-4000 8 Pallets 5,300x2,600x2,200 3,200-4,000 220V-660V/3P 121
AVC-5000 10 Pallets 6,600x2,600x2,200 4,200-5,000 220V-660V/3P 145
AVC-6000 12 Pallets 7,900x2,600x2,200 5,200-6,000 220V-660V/3P

166





Vacuum Cooling Machine Options

1. Condensor Options: Air cooling/Water cooling /Evaporative

2. Function Options: Hydro system&Water spray system

3. Door Options: Manual Door/Horizontal Sliding Door/ Upwards Lifting Door/ Vertical Lifting Door
