SHENZHEN ALLCOLD CO., LTD

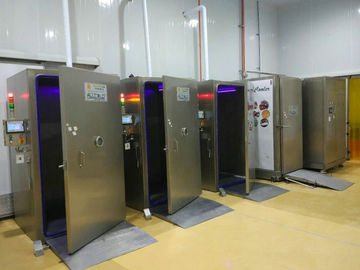

Touch Screen Control Vacuum Cooling Machine With Easy Operation Design

Product Details:
Place of Origin: China
Model Number: Vacuum Cooling Machine
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Delivery Time: 30-45 working days
  • Detail Information
  • Product Description

Detail Information

Compressor: /Copeland/Maneurop Vacuum Pump: Leybold/Busch/Becker
Refrigerants: R404A/R407C Vacuum Chamber: L7.4*W1.4*H2.2m
Warranty: 1 Year Application: Vacuum Cooler For Mushroom
Color: Green Design: Easy Operation Design
High Light:

pre cooling system

,

vegetable coolers

Product Description

Touch Screen Control Vacuum Cooling Machine With Easy Operation Design



Vacuum Cooling Machine Description



After the product is harvested and packaged, it is placed on pallets for shipping. The pallets are loaded into a vacuum tight chamber and the process begins. The equipment drops the pressure inside the vessel by removing air through vacuum pumps. Once the level of vacuum reaches the "flash point" moisture and heat are removed from the product in the form of water vapor. The lower the pressure inside the chamber, the lower the boiling point of water. As the vacuum goes deeper, more water vapor is removed and the product temperature is reduced until the desired temperature is achieved.
The water vapor must be removed in order for the process to work efficiently. The vacuum draws the water vapor past refrigeration coils which condenses the vapor back into water. These two systems allow the process to achieve desired product temperature more rapidly than any other post harvest cooling technique.



Mushrom Vacuum Cooler Main Components



a. Vacuum chamber--To load your vegetables.

b. Vacuum system--To takes away the air in vacuum chamber, then cool the vegetables down.

c. Refrigeration system--To catch the water vapor in ths chamber so as to ensure the continous cooling process.

d. Control system---To control and show the working condition of the vacuum cooler.





Vacuum Cooler Features

1. Green Cooling: Energy saving &Optimal cooling efficiency

2. Radily Cooling: From 30°C to 3°C in 20-30 Minutes

3. Extend Shelf Life: Stay freshness and Nutrition Longer

4. Accurated Control: PLC combine with sensitive sensors&valves

5. Easy Operation Design: Automatic Control work with touch screen

6.Reliable Parts: Busch/Leybold/Elmo Rietschle//Danfoss/Johnson/Schneider/LS



Vacuum Cooler Advantages

1. Minimized production losses

2. Improved economic of harvest operations

3. Minimized losses during marketing

4. Improved utilization by consumer

5. Expanded market opportunities





Vacuum Cooler Application Field

1. Vegetables(All Leafy Vegetables/Broccoli/Cauli Flower/Mushrooms/Sweet corn/ etc.)
2. Flowers(Fresh cut flowers)
3. Fruits(Berries/Cherries etc.)







Mushroom Vacuum Cooler Models&Specifications

Vegetables/Flowers/Fruits Vacuum Cooler Models& Specifications
Model No. Processing Capacity Inside Chamber
mm
Produce Weight
kg
Electricity Type Total Power
kW
AVC-500 1 Pallet 1,400x1,400x2,200 300-500 220V-660V/3P 31
AVC-1000 2 Pallets 2,600x1,400x2,200 800-1,000 220V-660V/3P 39
AVC-1500 3 Pallets 3,900x1,400x2,200 1,200-1,500 220V-660V/3P 47
AVC-2000 4 Pallets 5,200x1,400x2,200 1,500-2,000 220V-660V/3P 72
AVC-3000 6 Pallets 6,500x1,400x2,200 2,300-3,000 220V-660V/3P 98
AVC-4000 8 Pallets 5,300x2,600x2,200 3,200-4,000 220V-660V/3P 121
AVC-5000 10 Pallets 6,600x2,600x2,200 4,200-5,000 220V-660V/3P 145
AVC-6000 12 Pallets 7,900x2,600x2,200 5,200-6,000 220V-660V/3P

166





Customized Options

1. Condensor Options: Air cooling/Water cooling /Evaporative

2. Function Options: Hydro system&Water spray system

3. Door Options: Manual Door/Horizontal Sliding Door/ Upwards Lifting Door/ Vertical Lifting Door
