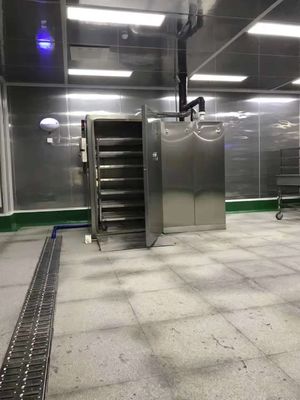

High Efficiency Cooling System Vacuum / Powerful Vacuum Cooling Equipment
Cooling System Vacuum Brief Description
The vaccum cooling process starts with the palletized product being loaded into the vacuum cooler either by forklift or automated pallet loading systems. Once loaded, the vacuum cooling systems starts to evacuate the air from the vacuum chamber. The reduction in temperature via vacuum cooling is achieved by rapid evaporation of water when the atmospheric pressure inside the chamber is lowered to the desire level by the vacuum pump.
The more surface area that the product has, compared to its weight, the greater the amount of heat that can be dissipated at a rapid rate. This means that vacuum cooling is an excellent way to cool products such as leafy vegetables and mushrooms. After some of the moisture in the product is pulled from the product and changed into vapour, the refrigeration coils pull the heat laden vapour away from the product and re-condenses it.
Cooling System Vacuum Main Components
a. Vacuum chamber--To load your vegetables.
b. Vacuum system--To takes away the air in vacuum chamber, then cool the vegetables down.
c. Refrigeration system--To catch the water vapor in ths chamber so as to ensure the continous cooling process.
d. Control system---To control and show the working condition of the vacuum cooler.
Cooling System Vacuum Features
1. Green Cooling: Energy saving &Optimal cooling efficiency
2. Radily Cooling: From 30°C to 3°C in 20-30 Minutes
3. Extend Shelf Life: Stay freshness and Nutrition Longer
4. Accurated Control: PLC combine with sensitive sensors&valves
5. Easy Operation Design: Automatic Control work with touch screen
6. Reliable Parts: Busch/Leybold/Elmo Rietschle//Danfoss/Johnson/Schneider/LS
Cooling System Vacuum Advantages
1. Minimized production losses
2. Improved economic of harvest operations
3. Minimized losses during marketing
4. Improved utilization by consumer
5. Expanded market opportunities
Cooling System Vacuum Application
1. Vegetables(All Leafy Vegetables/Broccoli/Cauli Flower/Mushrooms/Sweet corn/ etc.)
2. Flowers(Fresh cut flowers)
3. Fruits(Berries/Cherries etc.)
Cooling System Vacuum Models&Specifications
Vegetables/Flowers/Fruits Vacuum Cooler Models& Specifications | |||||
Model No. | Processing Capacity | Inside Chamber mm |
Produce Weight kg |
Electricity Type | Total Power kW |
AVC-1000 | 2 Pallets | 2,600x1,400x2,200 | 800-1,000 | 220V-660V/3P | 39 |
AVC-1500 | 3 Pallets | 3,900x1,400x2,200 | 1,200-1,500 | 220V-660V/3P | 47 |
AVC-2000 | 4 Pallets | 5,200x1,400x2,200 | 1,500-2,000 | 220V-660V/3P | 72 |
AVC-3000 | 6 Pallets | 6,500x1,400x2,200 | 2,300-3,000 | 220V-660V/3P | 98 |
AVC-4000 | 8 Pallets | 5,300x2,600x2,200 | 3,200-4,000 | 220V-660V/3P | 121 |
AVC-5000 | 10 Pallets | 6,600x2,600x2,200 | 4,200-5,000 | 220V-660V/3P | 145 |
AVC-6000 | 12 Pallets | 7,900x2,600x2,200 | 5,200-6,000 | 220V-660V/3P |
166 |
Customized Options of Our Cooling System Vacuum
1. Condensor Options: Air cooling/Water cooling /Evaporative
2. Function Options: Hydro system&Water spray system
3. Door Options: Manual Door/Horizontal Sliding Door/ Upwards Lifting Door/ Vertical Lifting Door
