SHENZHEN ALLCOLD CO., LTD

Stainless Steel 16000KG Vacuum Coolers With Danfoss Frascold Refrigeration Parts

Product Details:
Place of Origin: China
Model Number: Vacuum Coolers
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiable
Delivery Time: 30-45 working days
  • Detail Information
  • Product Description

Detail Information

Name: Vacuum Coolers Material: Stainless Steel
Refrigeration Parts: Danfoss/Frascold Electrical Parts: Schneider/LS
Refrigerants: R404A/R407C Capacity: 2000KG/6 Pallets
Weight: 16000KG Feature: Durable
High Light:

Frascold Refrigeration Parts Vacuum Coolers

,

16000KG Vacuum Coolers

,

Danfoss Refrigeration Parts Vegetable Coolers

Product Description

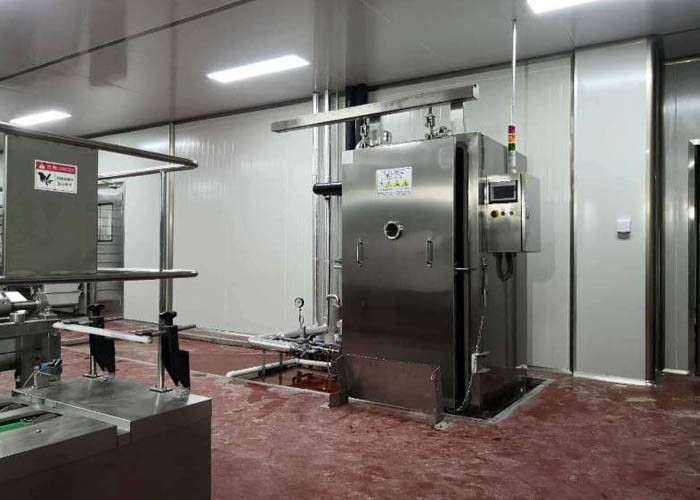

Stainless Steel Vacuum Coolers With Danfoss / Frascold Refrigeration Parts



Vacuum Coolers Description



vacuum cooling technology is different from conventional refrigeration equipment, it is a cool processing equipment, with fast, uniform and clean cooling advantages. The reduction in temperature via vacuum cooler is achieved by rapid evaporation of water when the atmospheric pressure inside the chamber is lowered by a vacuum pump. Generally, it takes only 30 minutes to reach the optimum storage temperature about 5 degrees.



Vacuum Coolers Components



a. Vacuum chamber--To load your vegetables. The size of the chamber is defined by the amount of pallets you want to cool at the same time, and their individual dimensions. The size of the chamber will decide the number of vacuum pumps to be used.

b. Vacuum system--To takes away the air in vacuum chamber, then cool the vegetables down. For the vacuum we are using pumps of the market leaders Busch and Elmo Rietchle. These pumps hardly need maintenance, are reliable and make very little noise.

c. Refrigeration system--To catch the water vapor in ths chamber so as to ensure the continous cooling process.

The evaporator (water catcher) inside the vacuum chamber condenses the water vapour, and ensures only dry air leaves the vacuum chamber towards the pumps.
Outside the chamber, the cold medium (R 404a) is cooled down by a refrigeration system. The compressor needed for this heat exchange process is supplied by (Germany) or by Hanbell (Taiwan).

d. Control system---To control and show the working condition of the vacuum cooler.



Vacuum Coolers Features



1. Green Cooling: Energy saving &Optimal cooling efficiency

2. Radily Cooling: From 30°C to 3°C in 20-30 Minutes

3. Extend Shelf Life: Stay freshness and Nutrition Longer

4. Accurated Control: PLC combine with sensitive sensors&valves

5. Easy Operation Design: Automatic Control work with touch screen

6.Reliable Parts: Busch/Leybold/Elmo Rietschle//Danfoss/Johnson/Schneider/LS



Vacuum Coolers Advantages



1. Minimized production losses

2. Improved economic of harvest operations

3. Minimized losses during marketing



Vacuum Coolers Specifications



Vegetables/Flowers/Fruits Vacuum Cooler Models& Specifications
Model No. Processing Capacity Inside Chamber
mm
Produce Weight
kg
Electricity Type Total Power
kW
AVC-500 1 Pallet 1,400x1,400x2,200 300-500 220V-660V/3P 31
AVC-1000 2 Pallets 2,600x1,400x2,200 800-1,000 220V-660V/3P 39
AVC-1500 3 Pallets 3,900x1,400x2,200 1,200-1,500 220V-660V/3P 47
AVC-2000 4 Pallets 5,200x1,400x2,200 1,500-2,000 220V-660V/3P 72
AVC-3000 6 Pallets 6,500x1,400x2,200 2,300-3,000 220V-660V/3P 98
AVC-4000 8 Pallets 5,300x2,600x2,200 3,200-4,000 220V-660V/3P 121
AVC-5000 10 Pallets 6,600x2,600x2,200 4,200-5,000 220V-660V/3P 145
AVC-6000 12 Pallets 7,900x2,600x2,200 5,200-6,000 220V-660V/3P

166





Customized Options of Our Vacuum Cooler

1. Condensor Options: Air cooling/Water cooling /Evaporative

2. Function Options: Hydro system&Water spray system

3. Door Options: Manual Door/Horizontal Sliding Door/ Upwards Lifting Door/ Vertical Lifting Door
