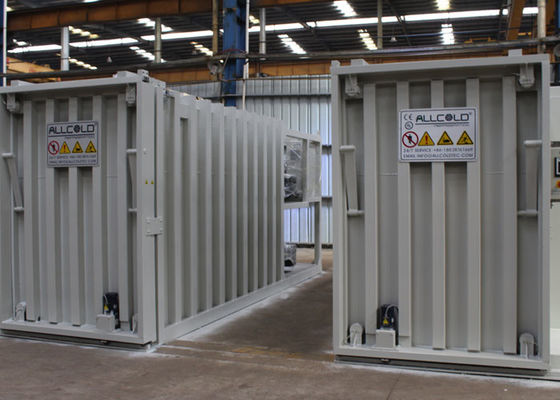

Pre Cooling R404a Fruit Cooler Machine Refrigeration System

Pre Cooling R404a Fruit Cooler Machine Refrigeration System

MOQ: 1 set
Price: Negotiated
Delivery Period: 30-45 working days
Payment Method: L/C
Detail Information
Name:
Pre Cooling Of Fruits And Vegetables
OEM:
OEM
Type:
Fruit Cooler Machine
Feature:
Fast
After-sales Service Provided:
Engineers Available To Service Machinery Overseas
Certification:
CE,UL
Minimum Order Quantity:
1 set
Price:
Negotiated
Delivery Time:
30-45 working days
Payment Terms:
L/C
High Light:

R404a Fruit Cooler Machine

,

Pre Cooling Fruit Cooler Machine

,

Refrigeration System Vacuum Cooling Machine

Product Description

OEM Pre Cooling Of Fruits And Vegetables , Fast Fruit Cooler Machine​

Vacuum Coolers Brief Description



After the product is harvested and packaged, it is placed on pallets for shipping. The pallets are loaded into a vacuum tight chamber and the process begins. The equipment drops the pressure inside the vessel by removing air through vacuum pumps. Once the level of vacuum reaches the "flash point" moisture and heat are removed from the product in the form of water vapor. The lower the pressure inside the chamber, the lower the boiling point of water. As the vacuum goes deeper, more water vapor is removed and the product temperature is reduced until the desired temperature is achieved.
The water vapor must be removed in order for the process to work efficiently. The vacuum draws the water vapor past refrigeration coils which condenses the vapor back into water. These two systems allow the process to achieve desired product temperature more rapidly than any other post harvest cooling technique.



Vacuum Coolers Main Components



a. Vacuum chamber--To load your vegetables. The size of the chamber is defined by the amount of pallets you want to cool at the same time, and their individual dimensions. The size of the chamber will decide the number of vacuum pumps to be used.

b. Vacuum system--To takes away the air in vacuum chamber, then cool the vegetables down. For the vacuum we are using pumps of the market leaders Busch and Elmo Rietchle. These pumps hardly need maintenance, are reliable and make very little noise.

c. Refrigeration system--To catch the water vapor in ths chamber so as to ensure the continous cooling process.

The evaporator (water catcher) inside the vacuum chamber condenses the water vapour, and ensures only dry air leaves the vacuum chamber towards the pumps.
Outside the chamber, the cold medium (R404a) is cooled down by a refrigeration system. The compressor needed for this heat exchange process is supplied by (Germany) or by Hanbell (Taiwan).

d. Control system---To control and show the working condition of the vacuum cooler.



Broccoli Vacuum Cooler Advantages



1. Minimized production losses

2. Improved economic of harvest operations

3. Minimized losses during marketing

4. Improved utilization by consumer

5. Expanded market opportunities



Vacuum Cooler Application Field

Refrigeration System

1. Vegetables(All Leafy Vegetables/Broccoli/Cauli Flower/Mushrooms/Sweet corn/ etc.)
2. Flowers(Fresh cut flowers)
3. Fruits(Berries/Cherries etc.)



Vacuum Cooler Models&Specifications



Vegetables/Flowers/Fruits Vacuum Cooler Models& Specifications
Model No. Processing Capacity Inside Chamber
mm
Produce Weight
kg
Electricity Type Total Power
kW
AVC-500 1 Pallet 1,400x1,400x2,200 300-500 220V-660V/3P 31
AVC-1000 2 Pallets 2,600x1,400x2,200 800-1,000 220V-660V/3P 39
AVC-1500 3 Pallets 3,900x1,400x2,200 1,200-1,500 220V-660V/3P 47
AVC-2000 4 Pallets 5,200x1,400x2,200 1,500-2,000 220V-660V/3P 72
AVC-3000 6 Pallets 6,500x1,400x2,200 2,300-3,000 220V-660V/3P 98
AVC-4000 8 Pallets 5,300x2,600x2,200 3,200-4,000 220V-660V/3P 121
AVC-5000 10 Pallets 6,600x2,600x2,200 4,200-5,000 220V-660V/3P 145
AVC-6000 12 Pallets 7,900x2,600x2,200 5,200-6,000 220V-660V/3P 166





Customized Options of Our Vacuum Cooler

1. Condensor Options: Air cooling/Water cooling /Evaporative

2. Function Options: Hydro system&Water spray system

3. Door Options: Manual Door/Horizontal Sliding Door/ Upwards Lifting Door/ Vertical Lifting Door
