| MOQ: | 1 set |
| Delivery Period: | 30-45 working days |

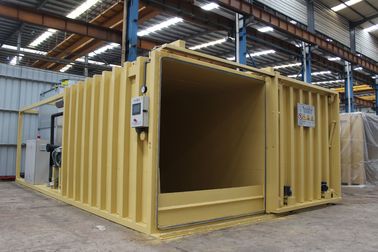

Stay freshness Vacuum Cooling System / Custom Made Vacuum Cooling Equipment
Vacuum Cooling System Brief Description
The vaccum cooling process starts with the palletized product being loaded into the vacuum cooler either by forklift or automated pallet loading systems. Once loaded, the vacuum cooling systems starts to evacuate the air from the vacuum chamber. The reduction in temperature via vacuum cooling is achieved by rapid evaporation of water when the atmospheric pressure inside the chamber is lowered to the desire level by the vacuum pump.
The more surface area that the product has, compared to its weight, the greater the amount of heat that can be dissipated at a rapid rate. This means that vacuum cooling is an excellent way to cool products such as leafy vegetables and mushrooms. After some of the moisture in the product is pulled from the product and changed into vapour, the refrigeration coils pull the heat laden vapour away from the product and re-condenses it
Vacuum Cooling System Features
1. Green Cooling: Energy saving &Optimal cooling efficiency
2. Radily Cooling: From 30°C to 3°C in 20-30 Minutes
3. Extend Shelf Life: Stay freshness and Nutrition Longer
4. Accurated Control: PLC combine with sensitive sensors&valves
5. Easy Operation Design: Automatic Control work with touch screen
6. Reliable Parts: Busch/Leybold/Elmo Rietschle//Danfoss/Johnson/Schneider/LS
Vacuum Cooler Advantages
1. Minimized production losses
2. Improved economic of harvest operations
3. Minimized losses during marketing
4. Improved utilization by consumer
5. Expanded market opportunities
Vacuum Cooler Application Field
1. Vegetables(All Leafy Vegetables/Broccoli/Cauli Flower/Mushrooms/Sweet corn/ etc.)
2. Flowers(Fresh cut flowers)
3. Fruits(Berries/Cherries etc.)
Vacuum Cooler Models&Specifications
| Vegetables/Flowers/Fruits Vacuum Cooler Models& Specifications | |||||
| Model No. | Processing Capacity | Inside Chamber mm |
Produce Weight kg |
Electricity Type | Total Power kW |
| AVC-500 | 1 Pallet | 1,400x1,400x2,200 | 300-500 | 220V-660V/3P | 31 |
| AVC-1000 | 2 Pallets | 2,600x1,400x2,200 | 800-1,000 | 220V-660V/3P | 39 |
| AVC-1500 | 3 Pallets | 3,900x1,400x2,200 | 1,200-1,500 | 220V-660V/3P | 47 |
| AVC-2000 | 4 Pallets | 5,200x1,400x2,200 | 1,500-2,000 | 220V-660V/3P | 72 |
| AVC-3000 | 6 Pallets | 6,500x1,400x2,200 | 2,300-3,000 | 220V-660V/3P | 98 |
| AVC-4000 | 8 Pallets | 5,300x2,600x2,200 | 3,200-4,000 | 220V-660V/3P | 121 |
| AVC-5000 | 10 Pallets | 6,600x2,600x2,200 | 4,200-5,000 | 220V-660V/3P | 145 |
| AVC-6000 | 12 Pallets | 7,900x2,600x2,200 | 5,200-6,000 | 220V-660V/3P |
166 |
ALLCOLD is the most professional manufacturer of Vacuum cooling systems and ice making machines in Asia, allcold also specialized in designing and manufacturing of high quality ice making machines(Tube ice machine, flake ice machine, block ice machine, and plate ice machine) We have earned the position of dependable supplier among a vast global clientele due to consistency in quality of our product range and services offered to the clients.
As a well established manufacturer and exporter, we lay special attention to our manufacturing process and delivery of products: Tube ice machine, flake ice machine, block ice machine, and plate ice machine. We take utmost care of quality at every stage of the manufacturing process. Our staff of highly qualified engineers combines the benefits of irreplaceable practical experience with the sophisticated accuracy of our own interactive graphics computer system enable us to provide high quality product, prompt deliveries, dependable service, and outstanding customer satisfaction.
ALLCOLD is known across the world for our high quality equipments and our quality controls sy. We have a hi-tech production unit that uses the latest technology and the most modernized machinery. We have a strong and proficient workforce, comprising of technically skilled professionals and efficient workers. Our research and development wing is our asset that develops and incorporates innovative ideas and products.
|
|
